A sampler study

In this notebook, we perform a short study of how various samplers implemented in pyPESTO perform.

# install if not done yet
# !apt install libatlas-base-dev swig
# %pip install pypesto[amici,petab,pymc,emcee] --quiet

The pipeline

First, we show a typical workflow, fully integrating the samplers with a PEtab problem, using a toy example of a conversion reaction.

import petab

import pypesto
import pypesto.optimize as optimize
import pypesto.petab
import pypesto.sample as sample
import pypesto.visualize as visualize

# import to petab
petab_problem = petab.Problem.from_yaml(
    "conversion_reaction/conversion_reaction.yaml"
)
# import to pypesto
importer = pypesto.petab.PetabImporter(petab_problem)
# create problem
problem = importer.create_problem()

Commonly, as a first step, optimization is performed, in order to find good parameter point estimates.

result = optimize.minimize(problem, n_starts=10, filename=None)

100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10/10 [00:01<00:00,  7.77it/s]

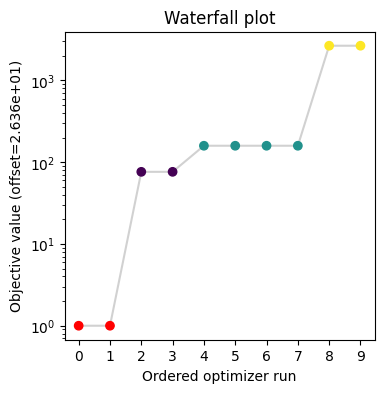

visualize.waterfall(result, size=(4, 4));

Next, we perform sampling. Here, we employ a pypesto.sample.AdaptiveParallelTemperingSampler sampler, which runs Markov Chain Monte Carlo (MCMC) chains on different temperatures. For each chain, we employ a pypesto.sample.AdaptiveMetropolisSampler. For more on the samplers see below or the API documentation.

sampler = sample.AdaptiveParallelTemperingSampler(
    internal_sampler=sample.AdaptiveMetropolisSampler(), n_chains=3
)

For the actual sampling, we call the pypesto.sample.sample function. By passing the result object to the function, the previously found global optimum is used as starting point for the MCMC sampling.

%%time
result = sample.sample(
    problem, n_samples=5000, sampler=sampler, result=result, filename=None
)

100%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 5000/5000 [00:26<00:00, 187.98it/s]
Elapsed time: 32.125099131

CPU times: user 27.9 s, sys: 4.26 s, total: 32.2 s
Wall time: 26.6 s

When the sampling is finished, we can analyse our results. A first thing to do is to analyze the sampling burn-in:

sample.geweke_test(result)

Geweke burn-in index: 0

0

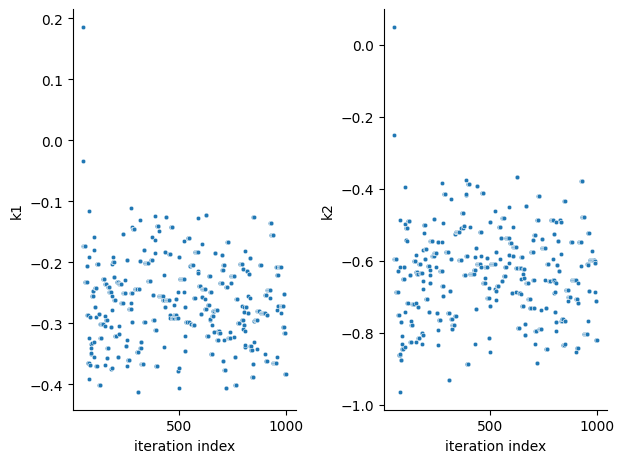

pyPESTO provides functions to analyse both the sampling process as well as the obtained sampling result. Visualizing the traces e.g. allows to detect burn-in phases, or fine-tune hyperparameters. First, the parameter trajectories can be visualized:

ax = visualize.sampling_parameter_traces(result, use_problem_bounds=False)

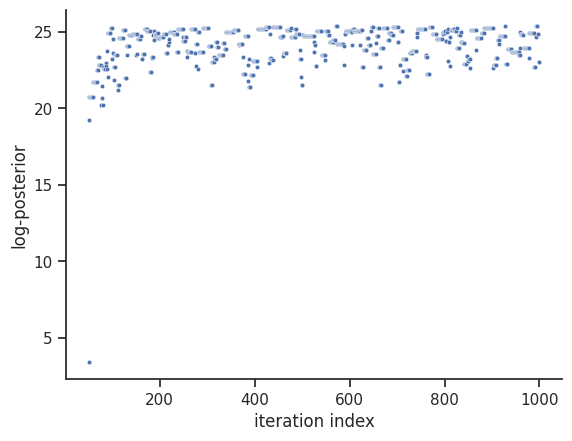

Next, also the log posterior trace can be visualized:

ax = visualize.sampling_fval_traces(result)

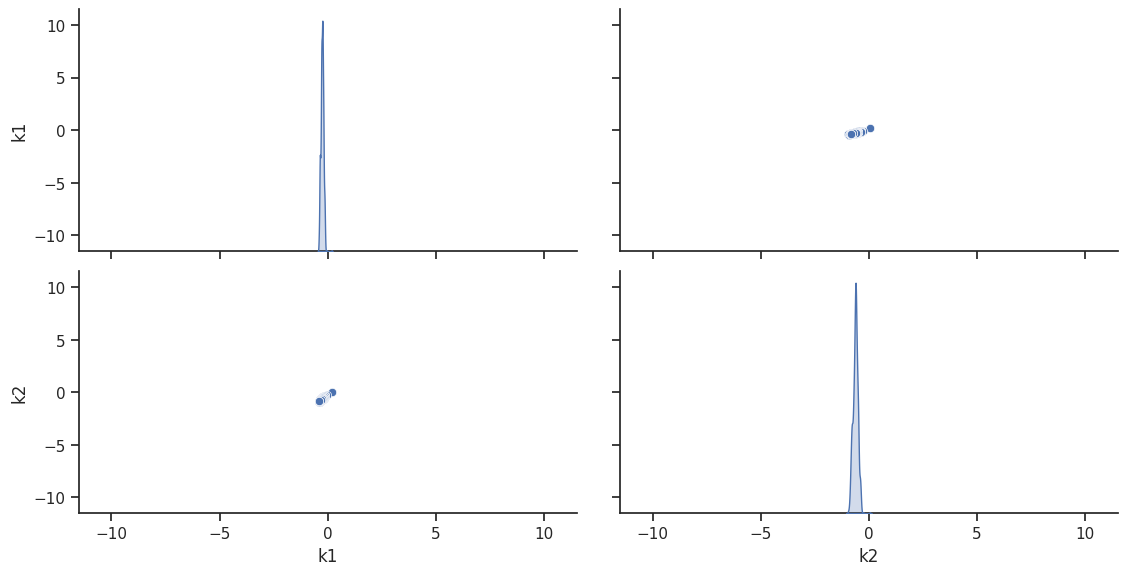

To visualize the result, there are various options. The scatter plot shows histograms of 1-dim parameter marginals and scatter plots of 2-dimensional parameter combinations:

ax = visualize.sampling_scatter(result, size=[13, 6])

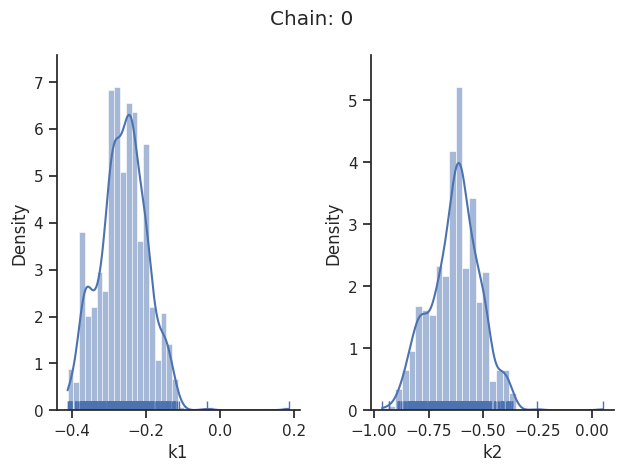

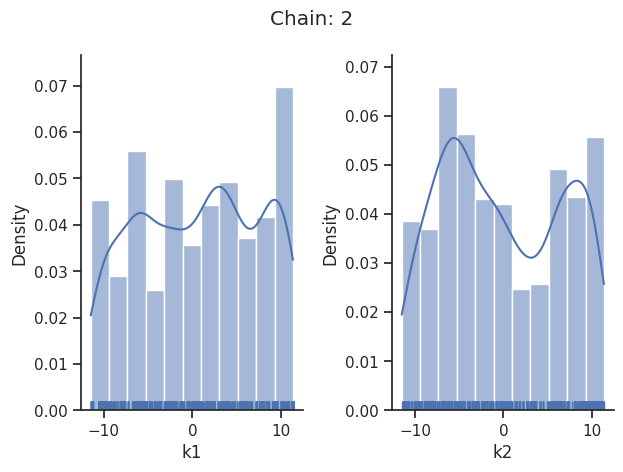

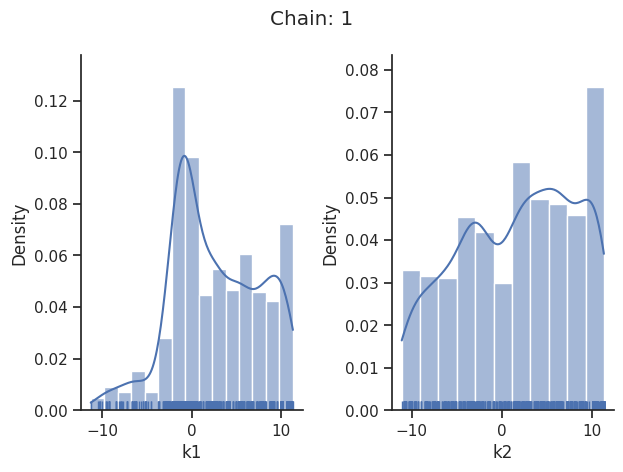

sampling_1d_marginals allows to plot e.g. kernel density estimates or histograms (internally using seaborn):

for i_chain in range(len(result.sample_result.betas)):
    visualize.sampling_1d_marginals(
        result, i_chain=i_chain, suptitle=f"Chain: {i_chain}"
    )

That’s it for the moment on using the sampling pipeline.

1-dim test problem

To compare and test the various implemented samplers, we first study a 1-dimensional test problem of a gaussian mixture density, together with a flat prior.

import numpy as np
import seaborn as sns
from scipy.stats import multivariate_normal

import pypesto
import pypesto.sample as sample
import pypesto.visualize as visualize


def density(x):
    return 0.3 * multivariate_normal.pdf(
        x, mean=-1.5, cov=0.1
    ) + 0.7 * multivariate_normal.pdf(x, mean=2.5, cov=0.2)


def nllh(x):
    return -np.log(density(x))


objective = pypesto.Objective(fun=nllh)
problem = pypesto.Problem(objective=objective, lb=-4, ub=5, x_names=["x"])

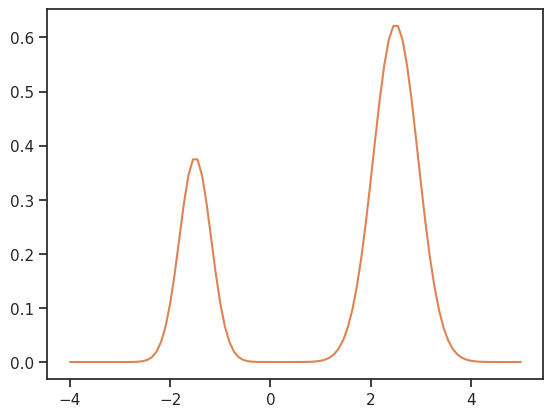

The likelihood has two separate modes:

xs = np.linspace(-4, 5, 100)
ys = [density(x) for x in xs]

ax = sns.lineplot(x=xs, y=ys, color="C1")

Metropolis sampler

For this problem, let us try out the simplest sampler, the pypesto.sample.MetropolisSampler.

sampler = sample.MetropolisSampler({"std": 0.5})
result = sample.sample(
    problem, 1e4, sampler, x0=np.array([0.5]), filename=None
)

100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10000/10000 [00:02<00:00, 3521.27it/s]
Elapsed time: 3.027658070000001

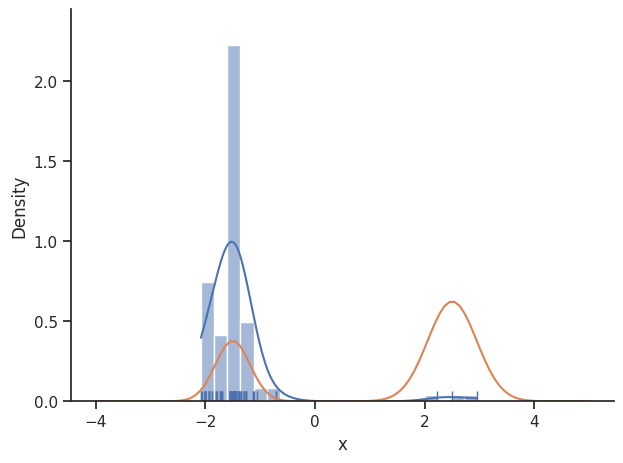

sample.geweke_test(result)
ax = visualize.sampling_1d_marginals(result)
ax[0][0].plot(xs, ys)

Geweke burn-in index: 0

[<matplotlib.lines.Line2D at 0x7f53ed167370>]

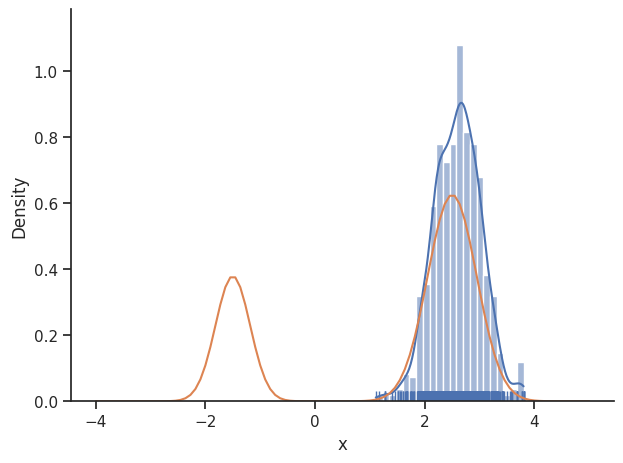

The obtained posterior does not accurately represent the distribution, often only capturing one mode. This is because it is hard for the Markov chain to jump between the distribution’s two modes. This can be fixed by choosing a higher proposal variation std:

sampler = sample.MetropolisSampler({"std": 1})
result = sample.sample(
    problem, 1e4, sampler, x0=np.array([0.5]), filename=None
)

100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10000/10000 [00:02<00:00, 3686.03it/s]
Elapsed time: 2.8828427840000046

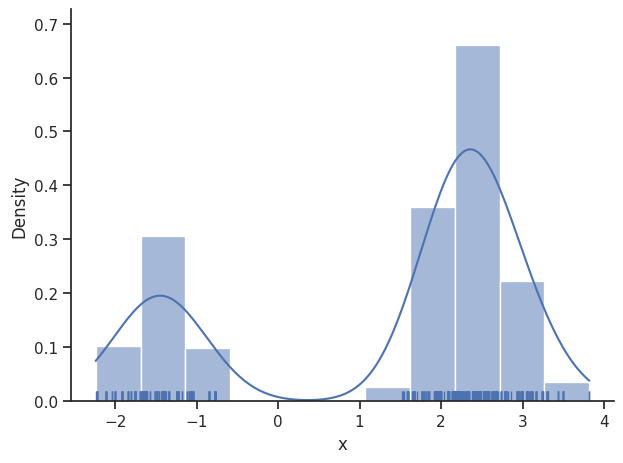

sample.geweke_test(result)
ax = visualize.sampling_1d_marginals(result)
ax[0][0].plot(xs, ys)

Geweke burn-in index: 2500

[<matplotlib.lines.Line2D at 0x7f53ecb12610>]

In general, MCMC have difficulties exploring multimodel landscapes. One way to overcome this is to used parallel tempering. There, various chains are run, lifting the densities to different temperatures. At high temperatures, proposed steps are more likely to get accepted and thus jumps between modes are more likely.

Parallel tempering sampler

In pyPESTO, the most basic parallel tempering algorithm is the pypesto.sample.ParallelTemperingSampler. It takes an internal_sampler parameter, to specify what sampler to use for performing sampling the different chains. Further, we can directly specify what inverse temperatures betas to use. When not specifying the betas explicitly, but just the number of chains n_chains, an established near-exponential decay scheme is used.

sampler = sample.ParallelTemperingSampler(
    internal_sampler=sample.MetropolisSampler(), betas=[1, 1e-1, 1e-2]
)
result = sample.sample(
    problem, 1e4, sampler, x0=np.array([0.5]), filename=None
)

100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10000/10000 [00:12<00:00, 805.62it/s]
Elapsed time: 13.030148679

sample.geweke_test(result)

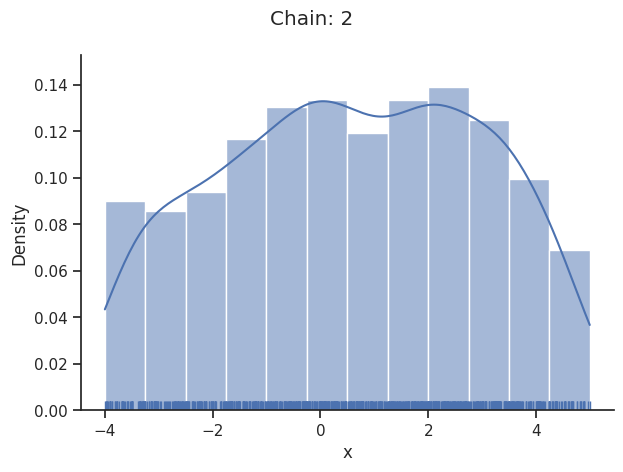

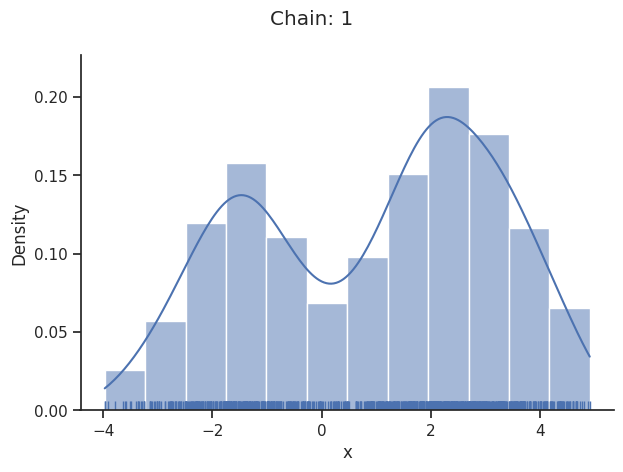

for i_chain in range(len(result.sample_result.betas)):
    visualize.sampling_1d_marginals(
        result, i_chain=i_chain, suptitle=f"Chain: {i_chain}"
    )

Geweke burn-in index: 500

Of interest is here finally the first chain at index i_chain=0, which approximates the posterior well.

Adaptive Metropolis sampler

The problem of having to specify the proposal step variation manually can be overcome by using the pypesto.sample.AdaptiveMetropolisSampler, which iteratively adjusts the proposal steps to the function landscape.

sampler = sample.AdaptiveMetropolisSampler()
result = sample.sample(
    problem, 1e4, sampler, x0=np.array([0.5]), filename=None
)

100%|██████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10000/10000 [00:03<00:00, 2607.40it/s]
Elapsed time: 3.8705950479999984

sample.geweke_test(result)
ax = visualize.sampling_1d_marginals(result)

Geweke burn-in index: 2500

Adaptive parallel tempering sampler

The pypesto.sample.AdaptiveParallelTemperingSampler iteratively adjusts the temperatures to obtain good swapping rates between chains.

sampler = sample.AdaptiveParallelTemperingSampler(
    internal_sampler=sample.AdaptiveMetropolisSampler(), n_chains=3
)
result = sample.sample(
    problem, 1e4, sampler, x0=np.array([0.5]), filename=None
)

100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10000/10000 [00:13<00:00, 765.33it/s]
Elapsed time: 13.167537605999996

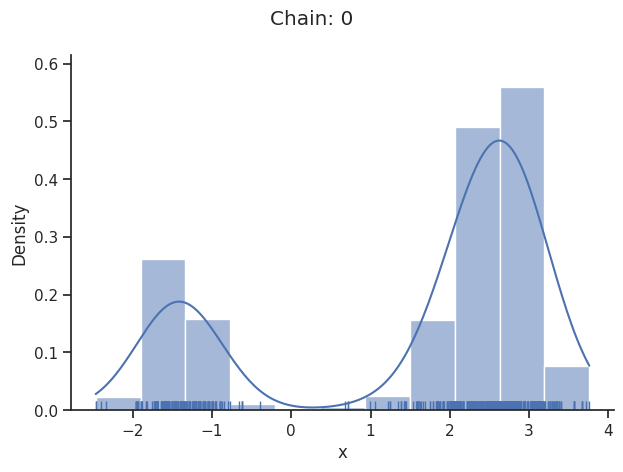

sample.geweke_test(result)

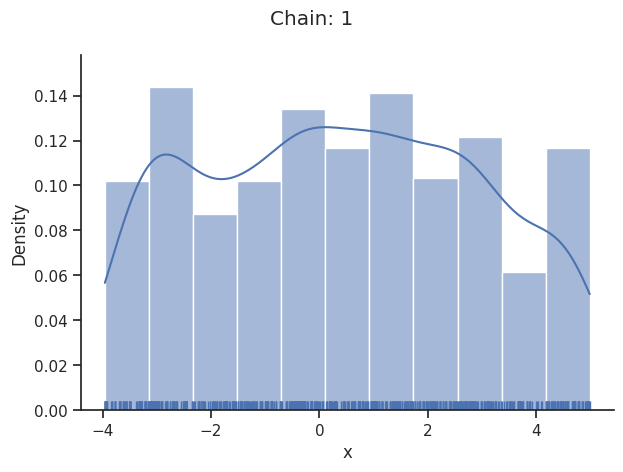

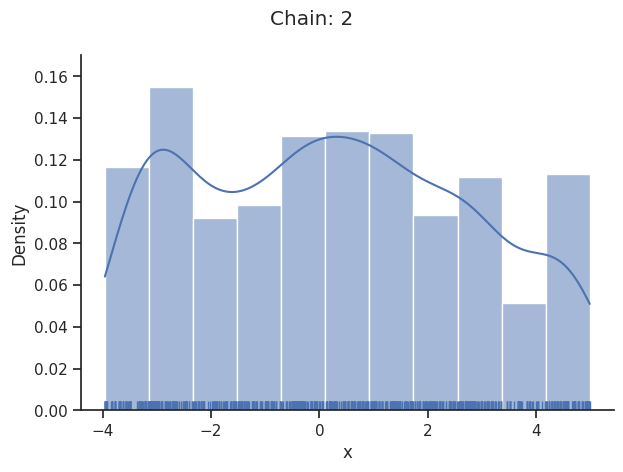

for i_chain in range(len(result.sample_result.betas)):
    visualize.sampling_1d_marginals(
        result, i_chain=i_chain, suptitle=f"Chain: {i_chain}"
    )

Geweke burn-in index: 0

result.sample_result.betas

array([1.0000000e+00, 2.1910497e-01, 2.0000000e-05])

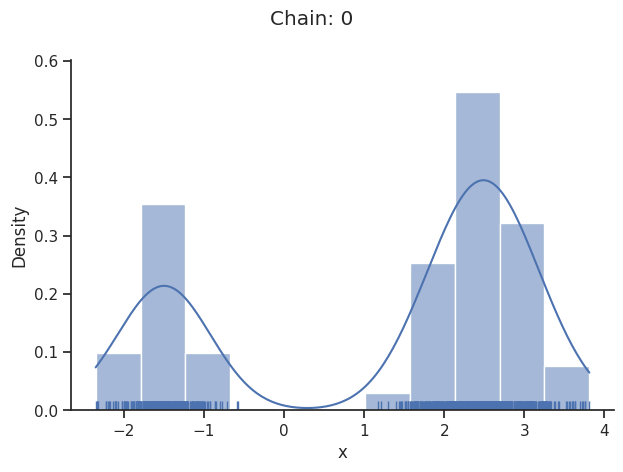

Pymc sampler

from pypesto.sample.pymc import PymcSampler

sampler = PymcSampler()
result = sample.sample(
    problem, 1e4, sampler, x0=np.array([0.5]), filename=None
)

Sequential sampling (1 chains in 1 job)
Slice: [x]

100.00% [11000/11000 00:27<00:00 Sampling chain 0, 0 divergences]

Sampling 1 chain for 1_000 tune and 10_000 draw iterations (1_000 + 10_000 draws total) took 28 seconds.
Elapsed time: 28.322158023

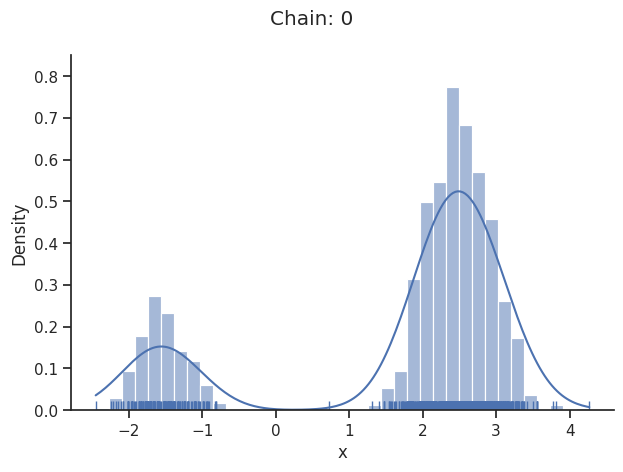

sample.geweke_test(result)
for i_chain in range(len(result.sample_result.betas)):

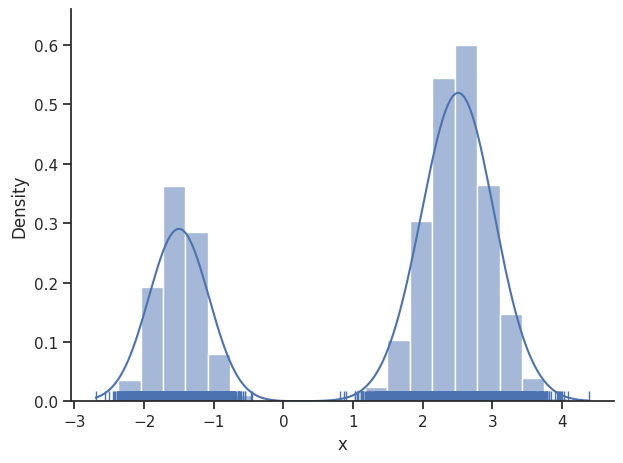

    visualize.sampling_1d_marginals(
        result, i_chain=i_chain, suptitle=f"Chain: {i_chain}"
    )

Geweke burn-in index: 0

If not specified, pymc chooses an adequate sampler automatically.

Emcee sampler

sampler = sample.EmceeSampler(nwalkers=10, run_args={"progress": True})
result = sample.sample(
    problem, int(1e4), sampler, x0=np.array([0.5]), filename=None
)

100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10000/10000 [00:27<00:00, 360.39it/s]
Elapsed time: 28.11863592600001

np.array([sampler.sampler.get_log_prob(flat=True)]).shape

(1, 100000)

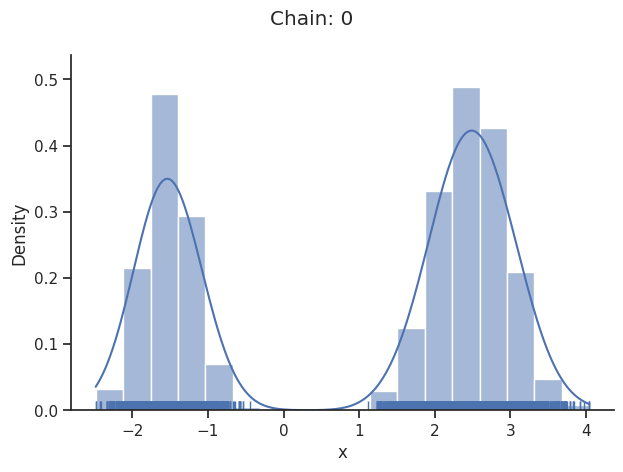

sample.geweke_test(result)
for i_chain in range(len(result.sample_result.betas)):
    visualize.sampling_1d_marginals(
        result, i_chain=i_chain, suptitle=f"Chain: {i_chain}"
    )

Geweke burn-in index: 0

dynesty sampler

The dynesty package provides nested and dynamic nested samplers. These differ from some of the other samplers that pyPESTO interfaces with. For example, it doesn’t make sense to request a certain number of samples. Instead, the sampler runs until stopping criteria have been met.

sampler = sample.DynestySampler()
result = sample.sample(
    problem=problem,
    n_samples=None,
    sampler=sampler,
    filename=None,
)

12509it [00:38, 321.78it/s, batch: 9 | bound: 3 | nc: 1 | ncall: 41584 | eff(%): 30.057 | loglstar: -1.671 < -0.471 < -0.561 | logz: -2.176 +/-  0.028 | stop:  0.969]
Elapsed time: 39.37040828100001

Another difference is that there is no burn-in so, unlike for some other pyPESTO sampler results, the Geweke test is not applied here, and the chain will not appear to be converged. However, by default, pyPESTO returns samples that have been resampled to appear like converged chains from MCMC sampling.

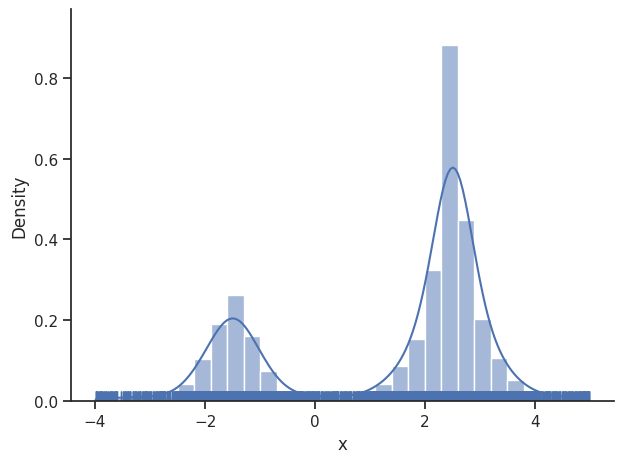

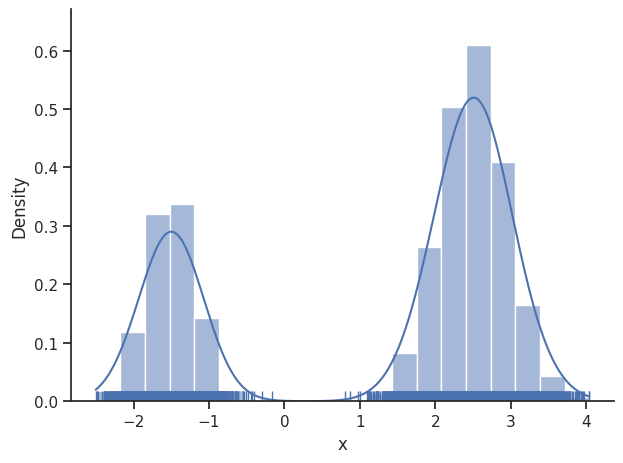

visualize.sampling_1d_marginals(result)

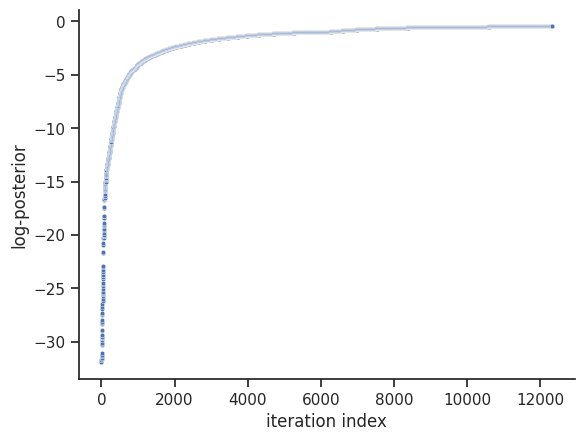

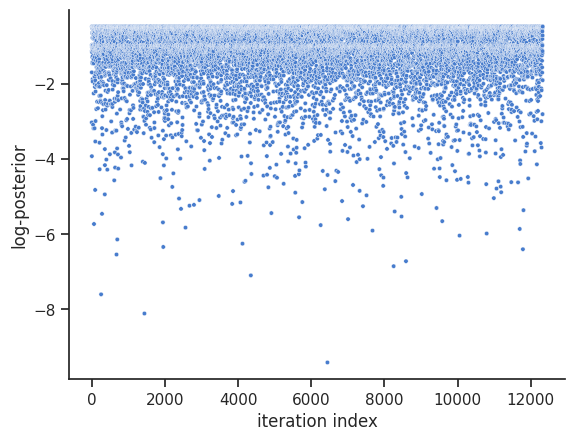

visualize.sampling_fval_traces(result, full_trace=True)

<AxesSubplot: xlabel='iteration index', ylabel='log-posterior'>

The internal dynesty sampler can be saved and restored, for post-sampling analysis. For example, pyPESTO stores resampled MCMC-like samples from the dynesty sampler by default. The following code shows how to save and load the internal dynesty sampler, to facilitate post-sampling analysis of both the resampled and original chains. First, we save the internal sampler.

sampler.save_internal_sampler("dynesty.dill")

Next, we load the internal sampler into some DynestySampler object, then set the sample_result of some pyPESTO result to the original samples.

dummy_sampler = sample.DynestySampler()
dummy_sampler.restore_internal_sampler("dynesty.dill")
dummy_result = pypesto.Result(problem=problem)

dummy_result.sample_result = dummy_sampler.get_original_samples()
visualize.sampling_1d_marginals(dummy_result)
visualize.sampling_fval_traces(dummy_result)

<AxesSubplot: xlabel='iteration index', ylabel='log-posterior'>

We then set the sample_result of the dummy_result back to MCMC-like resampled samples.

dummy_result.sample_result = dummy_sampler.get_samples()
visualize.sampling_1d_marginals(dummy_result)

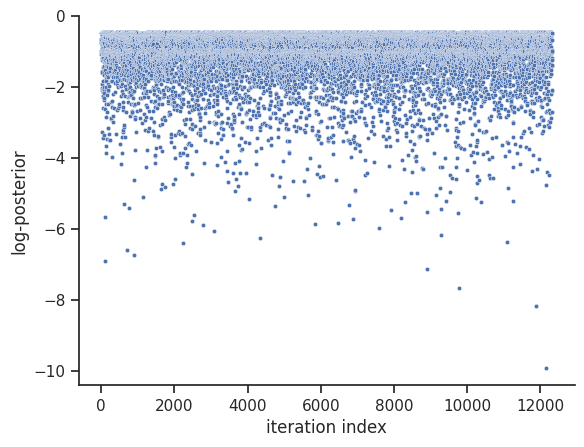

visualize.sampling_fval_traces(dummy_result)

<AxesSubplot: xlabel='iteration index', ylabel='log-posterior'>

This sampler supports parallelization, see the dynesty documentation for more details: https://dynesty.readthedocs.io

An example of doing this via pyPESTO is given below

import multiprocessing
import pypesto.sample as sample

if __name__ == '__main__':
    with multiprocessing.Manager() as manager:
        with manager.Pool() as pool:
            sampler_args = {
                'pool': pool,
                'queue_size': multiprocessing.cpu_count(),
            }
            sampler = sample.DynestySampler(sampler_args=sampler_args)
            result = sample.sample(...)

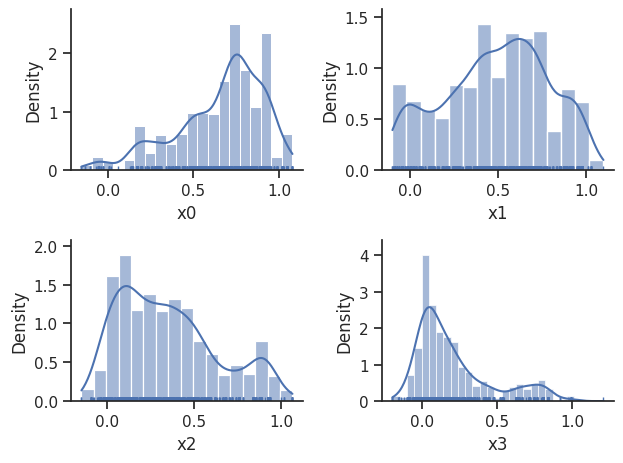

2-dim test problem: Rosenbrock banana

The adaptive parallel tempering sampler with chains running adaptive Metropolis samplers is also able to sample from more challenging posterior distributions. To illustrates this shortly, we use the Rosenbrock function.

import scipy.optimize as so

import pypesto

# first type of objective
objective = pypesto.Objective(fun=so.rosen)

dim_full = 4
lb = -5 * np.ones((dim_full, 1))
ub = 5 * np.ones((dim_full, 1))

problem = pypesto.Problem(objective=objective, lb=lb, ub=ub)

sampler = sample.AdaptiveParallelTemperingSampler(
    internal_sampler=sample.AdaptiveMetropolisSampler(), n_chains=10
)
result = sample.sample(
    problem, 1e4, sampler, x0=np.zeros(dim_full), filename=None
)

100%|███████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 10000/10000 [00:31<00:00, 320.68it/s]
Elapsed time: 31.302212088999994

sample.geweke_test(result)

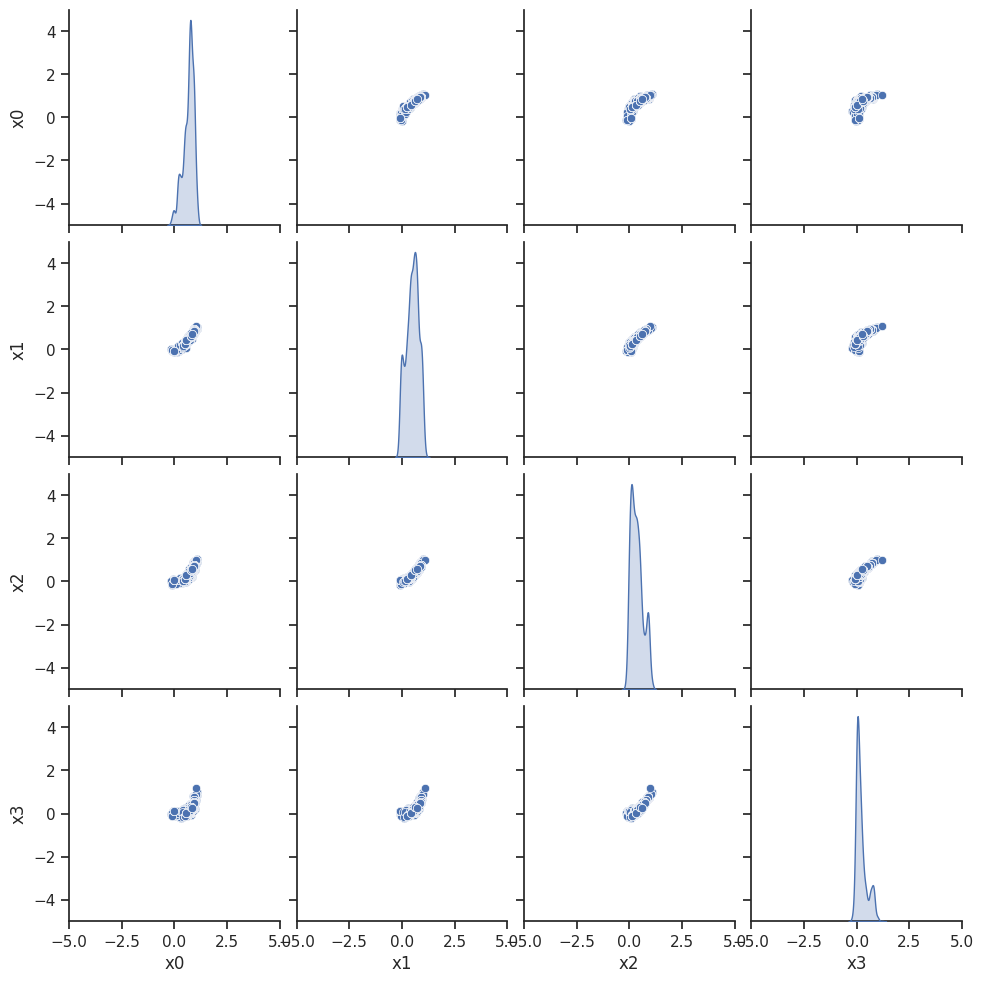

ax = visualize.sampling_scatter(result)
ax = visualize.sampling_1d_marginals(result)

Geweke burn-in index: 500
