Conversion reaction

# install if not done yet
# !apt install libatlas-base-dev swig
# %pip install pypesto[amici] --quiet

import importlib
import os
import sys

import amici
import amici.plotting
import numpy as np

import pypesto
import pypesto.optimize as optimize
import pypesto.visualize as visualize

# sbml file we want to import
sbml_file = "conversion_reaction/model_conversion_reaction.xml"
# name of the model that will also be the name of the python module
model_name = "model_conversion_reaction"
# directory to which the generated model code is written
model_output_dir = "tmp/" + model_name

Compile AMICI model

# import sbml model, compile and generate amici module
sbml_importer = amici.SbmlImporter(sbml_file)
sbml_importer.sbml2amici(model_name, model_output_dir, verbose=False)

Load AMICI model

# load amici module (the usual starting point later for the analysis)
sys.path.insert(0, os.path.abspath(model_output_dir))
model_module = importlib.import_module(model_name)
model = model_module.getModel()
model.requireSensitivitiesForAllParameters()
model.setTimepoints(np.linspace(0, 10, 11))
model.setParameterScale(amici.ParameterScaling.log10)
model.setParameters([-0.3, -0.7])
solver = model.getSolver()
solver.setSensitivityMethod(amici.SensitivityMethod.forward)
solver.setSensitivityOrder(amici.SensitivityOrder.first)

# how to run amici now:
rdata = amici.runAmiciSimulation(model, solver, None)

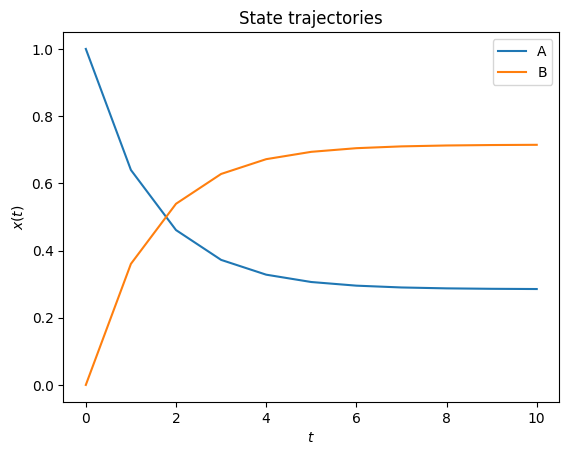

amici.plotting.plotStateTrajectories(rdata)
edata = amici.ExpData(rdata, 0.2, 0.0)

Optimize

%%time
# create objective function from amici model
# pesto.AmiciObjective is derived from pesto.Objective,
# the general pesto objective function class
objective = pypesto.AmiciObjective(model, solver, [edata], 1)

# create optimizer object which contains all information for doing the optimization
optimizer = optimize.ScipyOptimizer(method="ls_trf")

# create problem object containing all information on the problem to be solved
problem = pypesto.Problem(objective=objective, lb=[-2, -2], ub=[2, 2])

# do the optimization
result = optimize.minimize(
    problem=problem, optimizer=optimizer, n_starts=10, filename=None
)

CPU times: user 355 ms, sys: 3.77 ms, total: 359 ms
Wall time: 358 ms

Visualize

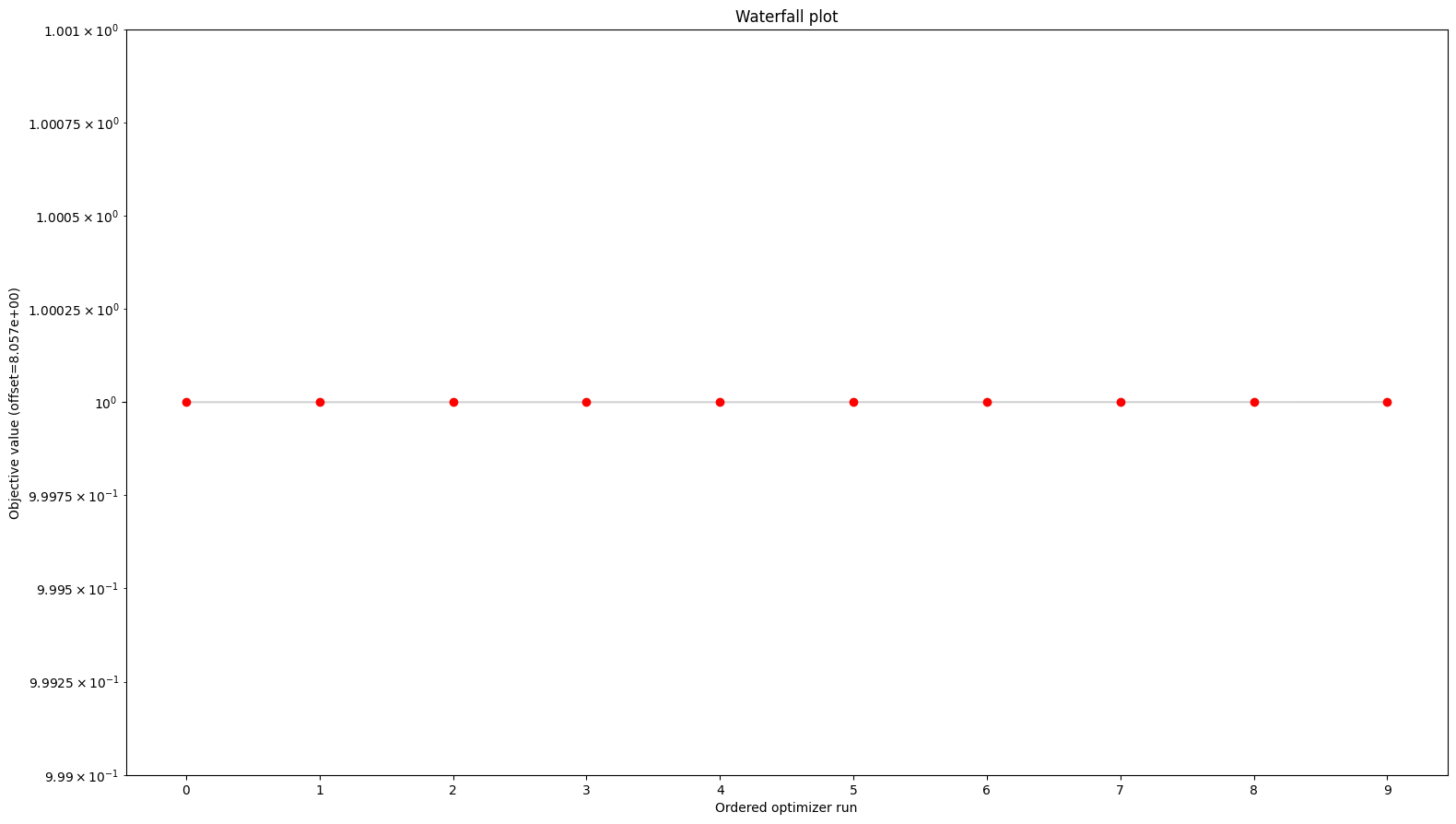

visualize.waterfall(result)

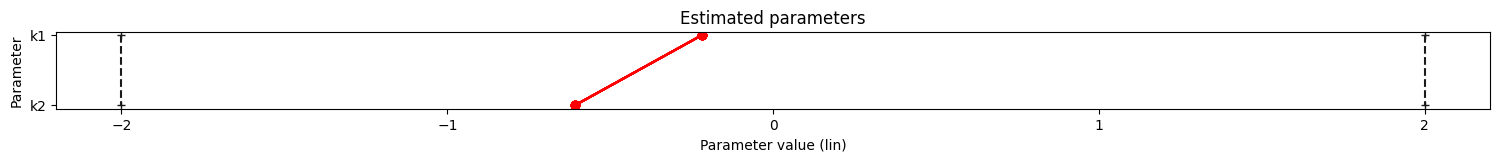

visualize.parameters(result)

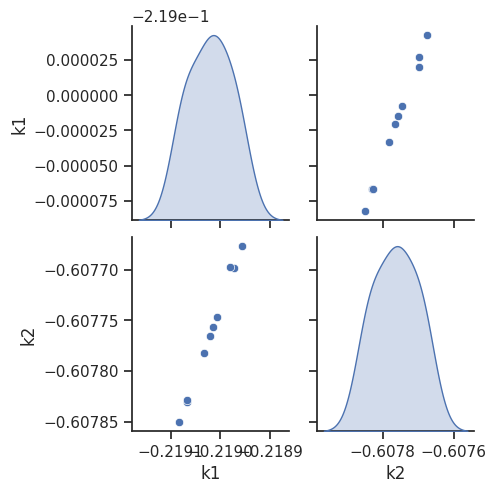

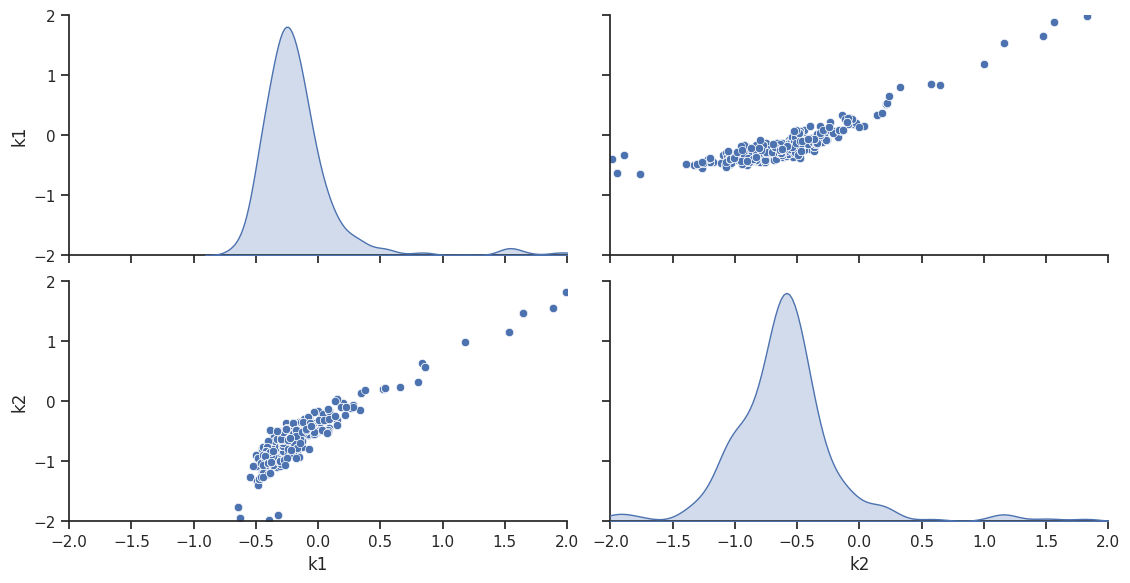

visualize.optimization_scatter(result=result)

<seaborn.axisgrid.PairGrid at 0x7f70bba4ffd0>

Profiles

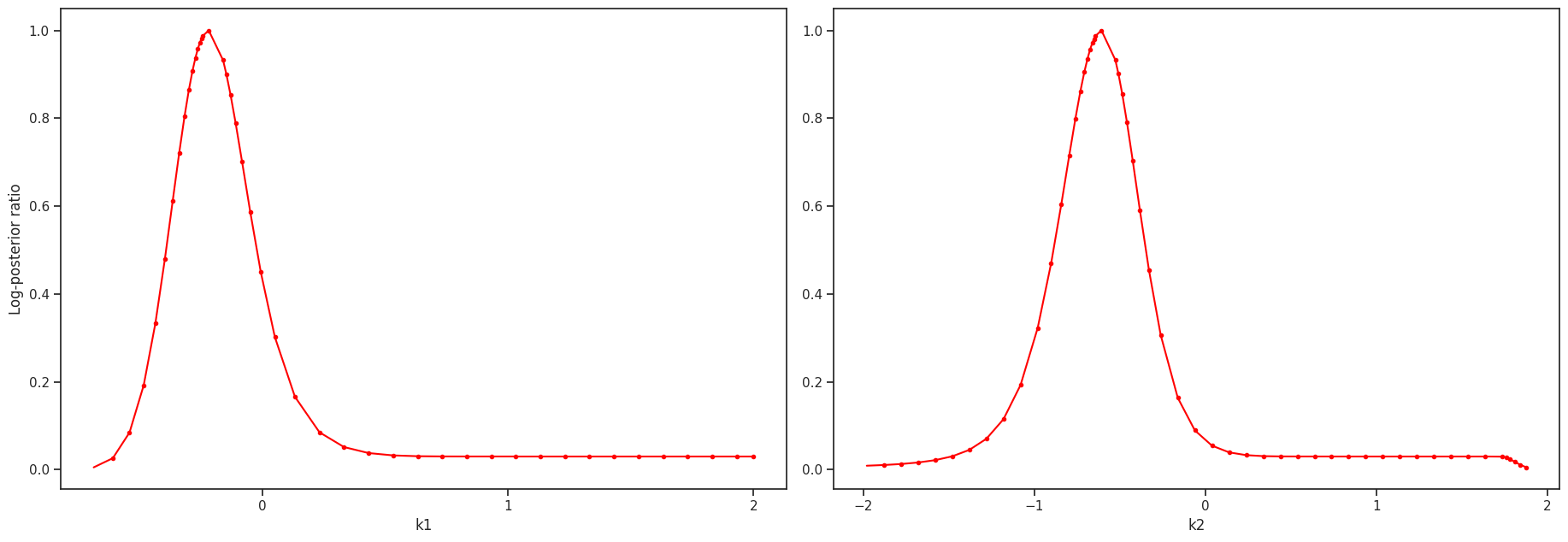

import pypesto.profile as profile

profile_options = profile.ProfileOptions(
    min_step_size=0.0005,
    delta_ratio_max=0.05,
    default_step_size=0.005,
    ratio_min=0.01,
)

result = profile.parameter_profile(
    problem=problem,
    result=result,
    optimizer=optimizer,
    profile_index=np.array([0,1]),
    result_index=0,
    profile_options=profile_options,
    filename=None,
)
